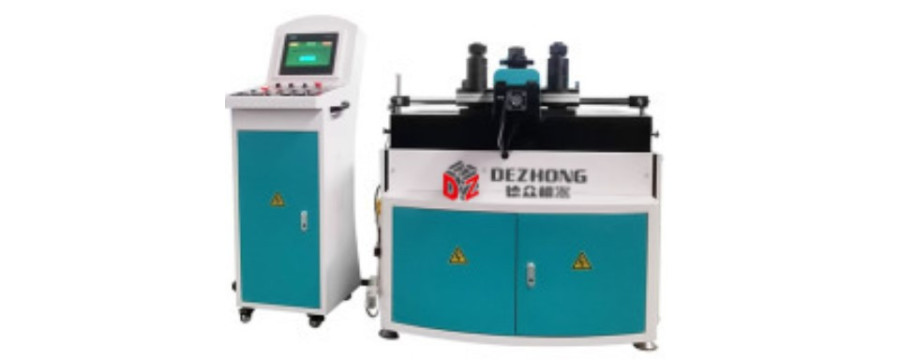

DEZHONG, CNC BEND

Automatic 20T 3Axis Bending Machine (Siemens control system)
Model - LLWYJ-20
Description
Power supply 380V/50HZ
Input power 5.9KW
Working pressure 0.2Mpa
Min. diameter of bending 60mm
Max. width of profile H150 x W150mm
Max. diameter of rolls 200mm
Lower shaft center-diamensions 330mm-530mm
Hydraulic cylinder pressure 20T
Roller-holding shaft diameter 65mm
Rotation speed of shaft 1-8r/min
Y-roller cylinder positioning accuracy ±0.1mm
Max. Y-roller travel 200mm
Torque 6000N.m
Size of machine 1000*800*1600mm
Weight of machine 800kg

Automatic 20T 3Axis Bending Machine (Siemens control system)
Model - LWYJ-20
Description
Power supply 380V/50HZ
Input power 5.9KW
Working pressure 0.2Mpa
Min. diameter of bending 60mm
Max. width of profile H150 x W150mm
Max. diameter of rolls 200mm
Lower shaft center-diamensions 350mm-700mm
Hydraulic cylinder pressure 20T
Roller-holding shaft diameter 65mm
Rotation speed of shaft 1-8r/min
Y-roller cylinder positioning accuracy ±0.1mm
Max. Y-roller travel 200mm
Torque 6000N.m
Size of machine 1300*1100*1500mm
Weight of machine 1000kg
