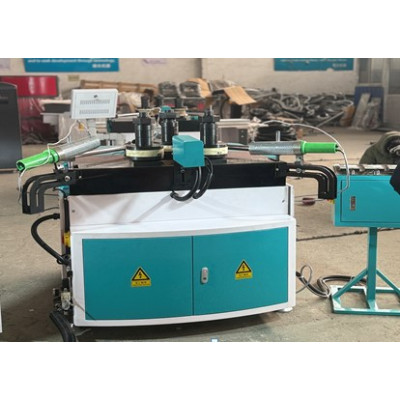

Dezhong LSWYJ-20 Automatic 20T Bending Machine (UPVC + ALU))

Automatic 20T 3Axis Bending Machine (Siemens control system)

Equipped by 3 pc of Heating Gun for UPVC processing

Model - LSWYJ-20T

Technical details:

1 Control system: Siemens controller (professional bending software is easy to use and has stable performance.)

2 Operation screen: Siemens 10-inch touch screen (easy to use)

3 Hydraulic system:Japan Yuken

4 Reducer: Taiwan Aimerxin

5 Grating ruler: Guangzhou Xinhe, domestic famous brand

6 Electrical components: France Schneider

7 Detection switch and limit switch: Taiwan Jiachun

8 top axis movement trajectory is a straight "work" shape structure (smooth movement)

9 The overall sheet metal of the device is anti-static spray plastic, and the rack is galvanized pipe welded and does not rust

10 The machine is equipped with anti-tilt support to prevent the shaft from tilting.

Performance pledge

Description

Power supply 380V/50HZ

Input power 5.9KW

Working pressure 0.2Mpa

Min. diameter of bending 60mm

Max. width of profile H150 x W150mm

Max. diameter of rolls 200mm

Lower shaft center-diamensions 350mm-700mm

Hydraulic cylinder pressure 20T

Roller-holding shaft diameter 65mm

Rotation speed of shaft 1-8r/min

Y-roller cylinder positioning accuracy ±0.1mm

Max. Y-roller travel 200mm

Torque 6000N.m

Size of machine 1300*1100*1500mm

Weight of machine 1000kg
