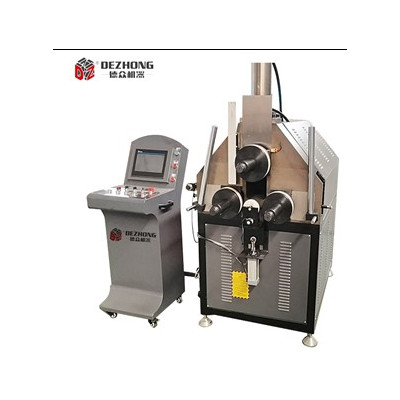

Dezhong LLWYJ-20 Automatic 20T 3Axis Bending Machine (Siemens control system)

Description

Power supply 380V/50HZ

Input power 5.9KW

Working pressure 0.2Mpa

Min. diameter of bending 60mm

Max. width of profile H150 x W150mm

Max. diameter of rolls 200mm

Lower shaft center-diamensions 330mm-530mm

Hydraulic cylinder pressure 20T

Roller-holding shaft diameter 65mm

Rotation speed of shaft 1-8r/min

Y-roller cylinder positioning accuracy ±0.1mm

Max. Y-roller travel 200mm

Torque 6000N.m

Size of machine 1000*800*1600mm

Weight of machine 800kg

$17,500.00 (tax incl.) $17,500.00 (tax excl.)

No tax

Delivery throughout Russia - by transport company.

Agreement on the processing of personal data

Technical details:

1 Control system: Siemens controller (professional bending software is easy to use and has stable performance.)

2 Operation screen: Siemens 10-inch touch screen (easy to use)

3 Uses a vertical structure to save space.Other functions are the same.

4 Reducer: Taiwan Aimerxin

5 Hydraulic system:Japan Yuken

6 Grating ruler: Guangzhou Xinhe, domestic famous brand

7 Electrical components: France Schneider

8 Detection switch and limit switch: Taiwan Jiachun

9 top axis movement trajectory is a straight "work" shape structure (smooth movement)

10 The overall sheet metal of the device is anti-static spray plastic, and the rack is galvanized pipe welded and does not rust

11 The machine is equipped with anti-tilt support to prevent the shaft from tilting.
