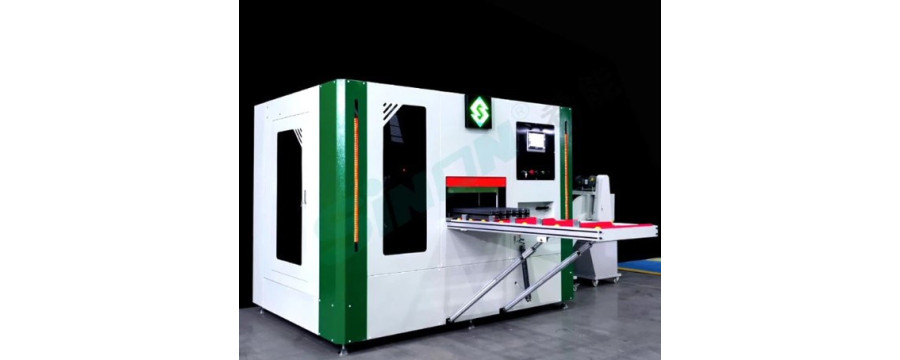

ЧПУ ФРЕЗЕРНЫЕ СТАНЦИИ

SINON DX09－CNC-250 CNC MILLING STATION, ALUMINUM
END milling machine for aluminum and PVC windows and doors
Highly efficient and multifunctional
CNC aluminum and PVC window and door making machine, profile face milling machine, suitable for processing trunnions and reinforced trunnions. This type of machine is designed for mass production
7 servo motors, 7 axes
There are 3 cutters in this machine. The three knives can move up and down, back and forth in 6 axes, and the total horizontal movement is 1 axis, so there are 7 axes in the machine.

SINON DX03-CNC-300 CNC MILLING STATION, ALUMINUM
Automatic CNC station for milling the ends of the MULLIONS Model - DX03-CNC-300
Technical Description
1. This machine is suitable for processing aluminum window end profiles, transoms, and restoring the end milling process of journal profile.
2. Three-axis control, digital adjustment of tool up and down, front and back position, adaptable to different processing shapes and sizes.
3. Automatic processing, easy to operate. The program can be saved, and one kind of profile only needs to be adjusted once.
4. Adjustable tools eliminate the need to order tools when processing different profiles, thereby shortening the production preparation cycle and reducing costs.
5. Multiple profiles can be milled at the same time to improve work efficiency.
6. Equipped with servo motor to ensure smooth and efficient operation.
7. Large tool diameter, high cutting speed and good surface quality.
8. Equipped with linear guides to realize high-precision processing

For the first time in Russia. New model of CNC Facade Notching Saw.
Manufactured by SINON, China.
High-quality equipment from an authorized dealer in Russia.
We deliver to order.
Model LJKJ-CNC-600. CNC machine, single 600 mm diameter saw blade, cooling, 180-degree blade rotation. Extensive library of possible notching options. Any non-standard façade profile notches. High blade movement and rotation speed. The portal moves in three axes, and the blade angle is adjusted automatically. The work table can also be rotated to the desired angle, with the set angle displayed on the electronic display.
Delivery time is 3-4 months. We work with VAT under contract. Import into Russia is completely legal, official delivery, no gray areas. Reliable, efficient, and safe. We have been operating in the Russian market for over 20 years.
The price of the equipment includes delivery to the client, commissioning work, and training of personnel to operate the equipment.

SINON - CHINESE EQUIPMENT FROM A LARGE FACTORY.
EXCLUSIVELY IN RUSSIA. WE GUARANTEE THE BEST QUALITY.
IN STOCK SALE, IN STOCK from an authorized dealer. LEASING AVAILABLE
SINON SZA-400. CNC MILLING MACHINE FOR PROCESSING END CUTTING OF ALUMINUM PROFILES.
Specifications
Used for milling end cutting of aluminum profiles for doors and windows.
Model: SZA400
Power voltage: 380 V, 50 Hz
Total equipment power: 11 kW
Spindle speed: 2850 rpm
Workbench width: 595 mm
Diameter: φ30 mm
Cutter diameter: φ350 mm
Maximum milling depth: 120 mm
Maximum milling height: 200 mm
Dimensions: 2880 x 1880 x 2160 mm
Weight: 1950 kg

SINON - CHINESE EQUIPMENT FROM A LARGE FACTORY.
EXCLUSIVELY IN RUSSIA. WE GUARANTEE THE BEST QUALITY.
IN STOCK SALE, IN STOCK from an authorized dealer. LEASING AVAILABLE
SINON SZA-400V. CNC MILLING MACHINE FOR PROCESSING END CUTTING OF ALUMINUM PROFILES.
Specifications
Used for milling end cutting of aluminum profiles for doors and windows.  Variable Angle of Milling
Model: SZA400V
Power voltage: 380 V, 50 Hz
Total equipment power: 11 kW
Spindle speed: 2850 rpm
Workbench width: 595 mm
Diameter: φ30 mm
Cutter diameter: φ350 mm
Maximum milling depth: 120 mm
Maximum milling height: 200 mm
Dimensions: 2880 x 1880 x 2160 mm
Weight: 1950 kg
