Profile Cutting Center UPVC
Model Type: SJMC03-4-6000Cutting Type: ±45°and V-notch cuttingApplication: This machine is used for cutting window and door PVC/Vinyl profiles.Highly Efficient: It can cut 4 profiles at one time, suitable for massive production.

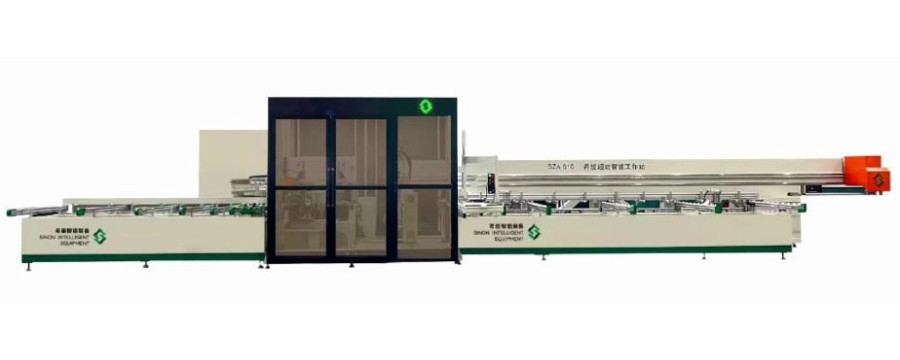

Aluminium Profile Cutting And Machining Center

Its super-efficient workstation with integrates ERP door and window software + 3-angles efficient sawing + 3-station 4-direction 8-axis drilling and milling + laser scribingModel: SZA610Input Voltage: 380V/50Hz/3P or CustomizedTotal power: 45.55KWSaw blade specifications:∮550*4.4*∮30*120Sawing angle +45º 90°-45°Sectional size of sawed profile (width×height):180*150mmWeight about 12T

CNC Aluminium Profile Milling Machine
SINON GCGZD-CNC-2500
Input power: 380V/50Hz or customized voltageTotal power: 7.5KwMain spindle speed: 0-24000rpmX axis processing range: 2500mmY axis processing range: 300mmZ axis processing range: 330mmDimension: 4100×1350×1900mmWeight: 2000kg

3+1 Axis CNC CONTROLLED COPY ROUTER MACHINE
Brand: China SinonModel: GCGZD-CNC-800Input power source: 380V/50Hz or CustomziedTotal power: 5KwMain spindle power: 3.5kwMain spindle speed: 0-18000rpmX axis processing range: 800mmY axis processing range: 200mmZ axis processing range: 145mmDimension: 1300×1500×1700mmWeight: 800kg

Tool Change CNC Aluminium Processing Machine HANS System

Model:GCGZD-CNC series, GCGZD-CNC-2500/3000/3500(X-way stroke)Power:380V 50Hz 3P or customizationCNC processing machine for aluminium profile, full automatic aluminium profile milling and drilling machine

SINON SHQXJ01 Welding & Corner Cleaning Line
/ Welding cleaning production line for pvc door and window / SHQXJ01 /
The production line is specialized in welding and cleaning outer corners of colored PVC profiles. It can be welded and formed into a rectangular window frame at one time, and the upper and lower welds are cleaned. Then, the completed window is transferred to the corner cleaning unit through the transfer workbench to complete the corner cleaning of the window. CNC Corner Cleaning

SINON SHQXJ02 Welding & Corner Cleaning Line UPVC
HORIZONTAL 4-HEAD WELDING MACHINE, DOUBLE CORNER CLEANING STATION

Features:
The production line is specialized in welding and cleaning outer corners of colored PVC profiles. It can be welded and formed into a rectangular window frame at one time, and the upper and lower welds are cleaned. Then, the completed window is transferred to the corner cleaning unit through the transfer workbench to complete the corner cleaning of the window. Double CNC Corner Cleaning Station.

SINON LJZ2E-CNS-500*4200 Double Head Cutting Machine (digital display, bottom blade feeding)

Sawing profile from bottom to top. The saw blade cuts the profile from bottom to top safely and reliably, and the cutting height and width are sufficient to cut several profiles at the same time at an angle of 45 or 90 degrees.
Electronic display shows the data of the dimensions set on the machine

Brand: China SinonInput Voltage 380V/50Hz or CustomizedInput Power 3.0KWCutting height 90x105mmCutting width 260mmCutting length 430~4200mmOverall Dimension 6000x1400x1400mmWeight 1500kg

SINON LJRZ2-CNC-500 * 6000
DOUBLE HEAD CNC AUTOMATIC CUTTING MACHINE, ARBITRARY ANGLES ADJUST
1. The double head CNC front saw is an advanced equipment used for cutting aluminum profiles.
2. This machine has a neat and stylish appearance, modeled on the European style.
3. The new closed-loop control system used in this machine is highly efficient, ensuring precise cutting.
4. The machine is equipped with a direct drive saw blade, which uses a lever-turn cutting type, making the blade feed by the pneumatic-hydraulic damping cylinder and ensuring smooth cutting.
5. The imported saw blade used in this machine has high precision, making the cutting surface smooth.
6. The cutting angle of the machine can be adjusted in the range of 45°~157.5° by the servo motor driving the speed reducer.

Aluminium Double Head Cutting Machine
LZJ2C-CNC-500*4200 / Full SIEMENS CNC system

1. Suitable for cutting Aluminum profiles and curtain wall profile
2. Can cut very small piece (cnc model)
3. Adopts imported industry grade computer system, closed-loop controlled, high precision and quick shift for cutting size.(CNC model)
4. Adopts imported servo motor and ball screw driver mode(CNC model).
5. Optimized function: optimizing to cut according to the working list(CNC model).
6. Tabulation cutting function: several kinds of profiles can be selected quickly.
7. Angle automatic indexing： -45°、90°

Double Head Cutting Machine (digital Display)
LZJ2B-CNS-500*4200
LZJ2B-CNS-500*4200 Used for the profile cutting of aluminum windows and doors, curtain wall and industrial aluminum. Its the first step of aluminium doors and windows manufacturing machines.

1. Designed for Aluminum, PVC and Curtain-wall profile accurate Cutting. Aluminium doors and windows manufacturing machines is most important in processing.
2. Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and convenient man operation work.

SINON LJRZ2-CNC-550*6000
DOUBLE HEAD CNC AUTOMATIC CUTTING MACHINE, ARBITRARY ANGLES ADJUST
1. The double head CNC front saw is an advanced equipment used for cutting aluminum profiles.
2. This machine has a neat and stylish appearance, modeled on the European style.
3. The new closed-loop control system used in this machine is highly efficient, ensuring precise cutting.
4. The machine is equipped with a direct drive saw blade, which uses a lever-turn cutting type, making the blade feed by the pneumatic-hydraulic damping cylinder and ensuring smooth cutting.
5. The imported saw blade used in this machine has high precision, making the cutting surface smooth.
6. The cutting angle of the machine can be adjusted in the range of 45°~157.5° by the servo motor driving the speed reducer.

SINON LJRZ2-CNC-600 * 6000
DOUBLE HEAD CNC AUTOMATIC CUTTING MACHINE, ARBITRARY ANGLES ADJUST
1. The double head CNC front saw is an advanced equipment used for cutting aluminum profiles.
2. This machine has a neat and stylish appearance, modeled on the European style.
3. The new closed-loop control system used in this machine is highly efficient, ensuring precise cutting.
4. The machine is equipped with a direct drive saw blade, which uses a lever-turn cutting type, making the blade feed by the pneumatic-hydraulic damping cylinder and ensuring smooth cutting.
5. The imported saw blade used in this machine has high precision, making the cutting surface smooth.
6. The cutting angle of the machine can be adjusted in the range of 45°~157.5° by the servo motor driving the speed reducer.

Double head Cutting Machine uPVC

SSJ06-450*3700, Double head vinyl cutting machine for upvc profiles, cutting angle: 90degree, inside 45 and outside 45

Double head Cutting Machine uPVC
SSJ06-450*3700, Double head vinyl cutting machine for upvc profiles, cutting angle: 90degree, inside 45 and outside 45

VERTICAL 4-HEAD Welding Machine UPVC
/ SHP4-CNC-180*1800*3000 / Suitable for welding white color PVC profile // Four corner CNC welding machine // The rectangle frame be welded once time /

● Suitable for welding white color PVC profile.
● Adopt 3 axis CNC system control: the user could custom the profile processing parameter, change the profile size easily. It features high location precision, repeat location precision is about ±0.2mm.
● Have error compensation function: it could modify the size error of the window frame effectively.
● Pressure protect/alarm function: to realize the effective quality control should make the machine start and work in normal pressure which strictly conformed tothe requirement so as to avoid quality problem and operational safety.

SINON SWHP4-CNC Four Corner Welding Machine
uPVC Window CNC Four Corner Welding Machine, designed to revolutionize the welding process for uPVC doors and windows. With its CNC control system, simple operation, and convenient adjustment, this machine offers unmatched production efficiency.

Our uPVC Window CNC Four Corner Welding Machine ensures precise and simultaneous welding of all four corners of the window, saving you time and effort. Set the welding parameters, and the machine will automatically execute the welding process, making it ideal for mass production of standard-sized windows.

SINON SCX03-3*60 Automatic Water Drainage Milling Machine
Main feature:
1. It is one of the PVC window processing machines, which is used to mill water drainage holes.
2. Full structure with high rigidity, processing beautiful water grooves, high processing quality.
3. Automatic change of cutters on the lower head, one-time fixation to complete the processing of water grooves.
4. High efficiency, suitable for mass production.
5. Special feeding system, no special maintenance, high milling quality.
6. Simple adjustment of the cutter position to process different profiles.
7. The milling length of water grooves is adjustable within 100mm, wide adaptability.
8. Adopt linear motion of the bearing to ensure the processing accuracy.

SINON SSKC02-100 PVC Copy Milling Machine
1. Used for milling and triple drilling of aluminum profiles and PVC profiles.
2. The scale of the copy milling operation is 1: 1
3. Drilling and milling various holes for installing door locks, easy to operate
4. Equipped with standard templates

SINON DX09－CNC-250 CNC MILLING STATION, ALUMINUM
END milling machine for aluminum and PVC windows and doors
Highly efficient and multifunctional
CNC aluminum and PVC window and door making machine, profile face milling machine, suitable for processing trunnions and reinforced trunnions. This type of machine is designed for mass production
7 servo motors, 7 axes
There are 3 cutters in this machine. The three knives can move up and down, back and forth in 6 axes, and the total horizontal movement is 1 axis, so there are 7 axes in the machine.
