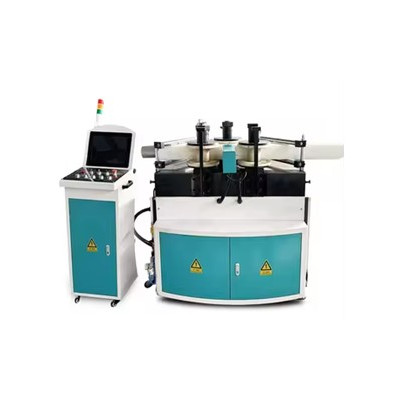

Dezhong LWYJ-CNC-20 Automatic 20T CNC Bending Machine (Industrial control system)

Automatic CNC Roll Bending Machine (Industrial computer system)

Model - LWYJ-CNC-20

Technical details:

1 Control system: Industrial computers (can import the drawings directly.many functions and high precision.)

2 Operation screen: 15-inch touch screen (easy to use)

3 Hydraulic system:German Roris.

4 Reducer: Taiwan Aimerxin

5 Electrical components: France Schneider

6 Detection switch and limit switch: Taiwan Jiachun

7 top axis movement trajectory is a straight "work" shape structure (smooth movement)

8 The overall sheet metal of the device is anti-static spray plastic, and the rack is galvanized pipe welded and does not rust

9 The machine is equipped with anti-tilt support to prevent the shaft from tilting.

Performance pledge

Description

Power supply 380V/50HZ

Input power 5.9KW

Working pressure 0.2Mpa

Min. diameter of bending 60mm

Max. width of profile H150 x W150mm

Max. diameter of rolls 200mm

Lower shaft center-dimensions 350mm-700mm

Hydraulic cylinder pressure 20T

Roller-holding shaft diameter 65mm

Rotation speed of shaft 1-15r/min

Y-roller cylinder positioning accuracy ±0.02mm

Max. Y-roller travel 200mm

Torque 6000N.m

Size of machine 1300*1100*1500mm

Weight of machine 1000kg
