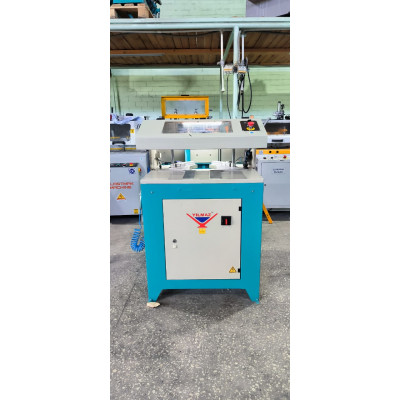

USED YILMAZ CA-601, 2013 Corner Cleaning Machine
USED YILMAZ CA-601, 2013 YEAR OF PRODUCTION. MACHINE FOR CLEANING CORNERS FOR ONE CUTTER, TURKEY
Machine for automatic cleaning of corners, for 1 group of cutters. Manufacturer YILMAZ, Turkey, model CA-601. Year of manufacture - 2013.
Excellent condition. Location - Samara. Shipment - pickup, delivery by a transport company in the Russian Federation is possible.
Delivery throughout Russia - by transport company.
Yilmaz CA 603 - The machine is designed to remove weld beads (top, bottom, outer corner at the same time) at an angle of 90 degrees
The Yilmaz CA 603 corner cleaning machine for PVC windows with four cutters allows you to completely clean the welding corner of a PVC profile after welding. Four cutters are installed on the machine at the same time, the selection of which occurs by pressing the corresponding button (you can see it in the video). For each cutter, you can separately adjust the milling depth. The machine's operation is fully automated, you only need to select the operating mode (knife processing / milling cutter processing / full processing) and then only bring the processed corners.
Adjustable for different types of profiles.
Equipped with a centering device for correct placement of the profile on the guide square.
Capable of stopping automatically after the end of the operation.
Specifications
Length 1150 mm. Width 950 mm
Height 1550 mm. Weight 300 kg
Air pressure 6-8 atm 35 l/min.
Maximum cutter height 120 mm. Maximum cutter diameter 230 mm.
Direction of cutter rotation right (clockwise)
Voltage 2x1.2 kW 400 V 50 Hz.
Cutter landing diameter 32 mm.
Cutter rotation speed 3,000 rpm.
