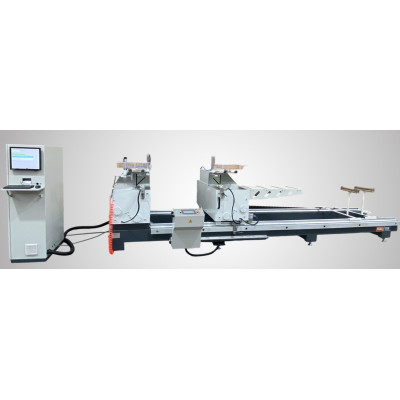

ПВХ FENSTEK IADS500*5000 Double Head CNC Cutting Machine

PVC FENSTEK IADS500*5000 TWO-HEAD CNC SAW FOR CUTTING 4-6 PVC PROFILES IN ONE CYCLE

SUPPLY ON ORDER!!!

IADS500X5000 Automatic Double-Head Saw for Cutting PVC Profiles with Bottom Feed. CNC Saw for Cutting 4-6 Profiles at a Time. It is possible to retrofit the saw with an industrial computer and label printer option.

Characteristics:

1. The machine is specially designed for cutting PVC window profiles in large volumes.

2. Four or six parts can be cut at a time, depending on the profile width.

3. Automatic change inside 45 and 90 degrees. Different degrees are not available.

4. The saw blade is fed stably and accurately from the inside to the outside using a pneumatic cylinder. An additional hydropneumatic feed cylinder is available.

5. Linear bearing system ensures the saw blade feeds accurately.

6. Carbide saw blade ensures high precision cutting surface.

7. Right head movement is automatic and easy. Auto brake device.

8. With additional intermediate supporting mechanism of equivalent length, convenient feeding and arrangement.

9. Linear guide pair ensures stable processing accuracy.

10. Fully enclosed structure ensures clean production.

11. Robust machine structure ensures stability and long service life.

12. Plate horizontal and vertical clamping devices ensure multi-profile high-precision positioning.

13. Standard maximum cutting length of 5, suitable for large-size window production. Small machine base is optional.

14. Foot switch and push-button control ensure convenient operation.

15. Automatic positioning and braking controlled by industrial computer.

16. Schneider system ensures high accuracy and stability.

17. Dust collection system ensures clean operation.

COMMERCIAL OFFER WILL BE PROVIDED UPON YOUR REQUEST
