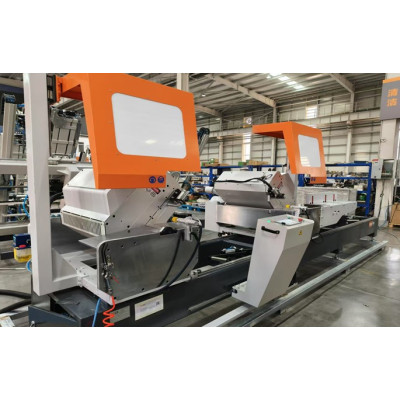

FENSTEK ADS600*4500 Double Head CNC Arbitrary Angle Saw

FENSTEK ADS600*4500 CNC B2B TWO-HEAD FRONT SAW WITH SERVO DRIVE

SUPPLY ON ORDER!!!

TWO-HEAD FRONT SAW FOR ALUMINUM WITH CNC.

Industrial computer, label printer installed. 600 mm disks, cooling. Maximum cutting length 6000 mm.

Functions:

1. Double-head three-axis front saw with CNC for cutting at any angle.

2. The machine is similar to European models.

3. The machine has a modern control system.

4. The saw blade with direct drive has a lever type of cutting.

5. The saw blades are fed using a hydraulic damping cylinder, ensuring smooth cutting.

6. The imported control system ensures cutting quality.

7. The cutting task can be uploaded to the machine via the network. The cutting length can also be input directly.

8. The saw blade guards ensure safe operation for the operator.

9. The profile is clamped by two pneumatic cylinders on each head (one vertical and one horizontal pneumatic clamp) as standard, which maintains the reliability of the profile fixation during the cutting process.

10. The servo motor drives the speed reducer, adjusting the cutting angle: 45.0 ° - 135 °.

11. The saw head uses a rack and pinion driven by an imported servo motor with a fully closed configuration, which ensures high machine speed and high accuracy.

12. Using rotary table positioning technology, high cutting accuracy.

13. Vertical and horizontal pneumatic clamp to ensure stable profile fixation.

14. The left saw head is fixed, the right saw head can move left and right according to the set cutting length.

15. There is an additional intermediate support mechanism for long workpieces, convenient feeding.

16. The saw head realizes cyclonic feeding with a fixed axis on the vertical side of the worktable, ensuring stable cutting operation.

Parameters:

Power supply: 380V, 50Hz.

Air consumption: 70L/min.

Motor power: 2*4.0kW

Spindle motor speed: 2800r/min.

Cutting length: 460-4500mm at 90°.

CNC repeat positioning accuracy: ±0.1mm.

Cutting angle: 45.0°-135°

Cutting height * width: 280mm * 180mm at 90°.

Saw blade: Φ600 mm

Knife feed speed: 0-5 m/min.

Size: 5800x1840x1760 mm

The following options are included in the price of the ADS600X4500 double-head saw:

1. Coolant supply system (cooling)

2. Chip and dust collection device

3. Industrial PLC and printer

4. Hydraulic saw blade feed cylinder

5. Short cut option

6. Length positioning and angle adjustment are servo driven
