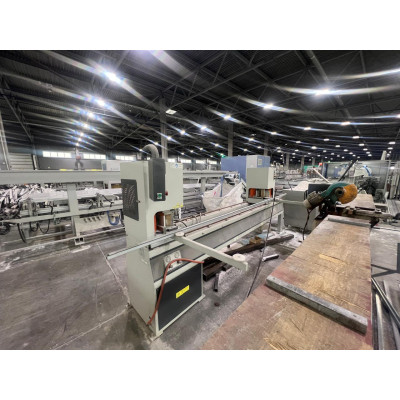

Used MURAT KC258, 2017. Twin-Head Welding Machine

MURAT KC258, 2017

Two-head welding machine with top feed of heating elements;

- The machine welds the outer surface of the profile with a thickness of 0.2 to 0.4 mm;

- This technology allows you to get a thin front seam on a laminated PVC profile, the appearance of which is much more attractive than standard welding;

- The right welding head allows you to weld profiles only at an angle of 90 degrees, the left one - with a variable angle;

- The right welding head moves manually along the guides;

- The working cycle is automatic;

- The electronic system of the machine allows you to set welding modes (adjust the heating and compression time of the workpieces, the compression force of the workpieces) and constantly monitor them;

- The electronic display on the control panel provides information on all working cycles and emergency failures.

Technical specifications:

- Standard voltage: 380 V; - Frequency: 50/60 Hz;

- Total power: 3 kW; - Air pressure: 6-8 bar;

- Air consumption: 11.5 l/min;

- Max profile height: 160 mm; - Max profile width: 130 mm;

- Machine length: 3905 mm; - Machine width: 750 mm;

- Machine height: 1500 mm; - Machine weight: 620 kg;

- Min welding length: 420 mm; - Max welding length: 3400 mm

The equipment is in excellent technical condition, everything works, the machine has been tested. Full set. Teflon was replaced, everything else is standard.

Sale is possible by bank transfer without VAT, simplified tax system. We will provide a package of documents - a supply agreement, UPD, an acceptance certificate, a consignment note for transportation.

We will help with shipment, upon request we will provide
