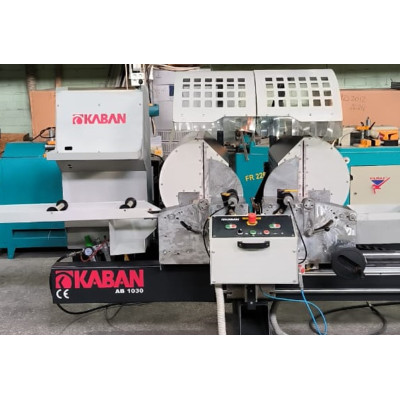

KABAN AB1030, 2021 Double Head Mitre Saw

Semi-automatic frontal double-head saw, complete with a stationary roller table for feeding the profile on the left. Model KABAN AB1030. 2021 year of manufacture. Condition of new equipment. Can be checked in operation, we will provide photos and videos upon request. Warehouse storage. Location - Samara. We will send to the transport company in the Russian Federation. Can be purchased by bank transfer without VAT. We will provide a full package of documents - UPD, supply agreement, acceptance certificate, TTN for the road if necessary

KABAN AB 1030

Mechanical double-head machine for cutting PVC and aluminum

General characteristics:

• Possible operation with one head and mechanical adjustment of sizes

• There is a stop between the heads to support the profile

Inward tilt of the saw units.

• Special vacuum system allows cutting without leaving chips in the heads

• Provides high quality cutting and is easy to use

• Possibility of adjusting the saw extension speed

• There is a horizontal clamp and a practical piston position adjustment system.

Technical specifications:

Power supply: 400 V, 3 phases, 50 - 60 Hz

Power consumption: 3 kW

Air pressure: 6-8 bar

Air consumption: 24 l/min

Saw blade: Ø420x4.0x30 mm

Minimum cutting length: 400 mm

Maximum cutting length: 4000 mm

Maximum profile section: 140 x 185 mm

Dimensions: 6909x1350x1516 mm

Weight: 1025 kg
