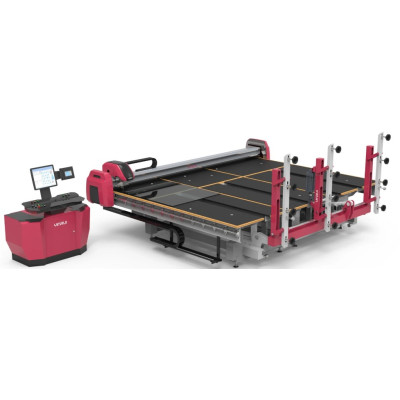

YR-AD3728 Multipurpose CNC Glass Cutting Table

YR-AD3728 Multifunctional Glass Cutting Table

Specifications

1) Cutting accuracy - ≤±0.2mm/m

2) Glass thickness - 3-19mm

3) Cutting speed - 0~180m/min

4) Max. cutting size - 3700 x 2800mm

5) Machine size - 5000 x 3000mm

6) Voltage - 230V/50HZ

7) Power - 13kW

Cutting system

Maximum glass cutting size: 3700*2800mm, glass thickness: 3-19mm.

1. Equipment parameters:

a) Drive system: X-Y-Z axis with YASKAWA servo motor;

b) Cutting disc holder: 360-degree cutting disc rotation allows cutting of any shape;

c) Oil supply: automatic oil supply;

d) Conveyor: pneumatic (floating) (glass thickness of 3-12 mm can be moved; handling glass thickness of 12-19 mm requires the assistance of workers);

e) Positioning: pneumatic and photoelectric scanning;

f) Operator: one person.

2. Mechanical parts:

a) Tabletop: high-quality fire- and water-resistant board;

b) Grate/guides: Japanese KHK;

c) Pneumatic parts: SMC;

d) Cutting disc and holder: imported, German Bohlee;

f) Tabletop: black felt with HDF board;

g) Caster support: combined pneumatic/spring.

3. Electrical components:

a) Personal computer;

b) System: Microsoft Windows;

c) Power supply: 50 Hz;

d) Motor: Japanese YASKAWA motor;

e) Drive switch: Swiss ELCO;

f) Control board: Imported from Italy (compatible with Italian OPTIMA software);

g) Main electrical components: Schneider AC contactor;

h) Proportional pneumatic valve: Japanese SMC.

4. Software:

a) Nesting and optimization software imported from Italy. The optimization software can be integrated with the ERP system. Nesting position limitation. Automatic productivity calculation. A database of more than two thousand nesting shapes. (Easy to use) Compatible with AUTO CAD drawing software.

b) Automatic calibration function ensures cutting accuracy.

c) Cutting route selection function ensures optimal cutting speed.

d) Automatic cutting pressure adjustment, fast, accurate, and stable.

e) Data input: keyboard and mouse, Chinese and English interface.

f) Shape Scanning: Scan various shapes point by point and then transfer them to a CAD drawing.

g) Shape Database: A database for various shape types is available.

h) Shape Optimization: Smooth resizing, rotation, movement, and combination in the database.

i) Cutting Head Protection: A mechanical protection function that prevents damage.

j) Shape Cutting: Automatic cutting of straight and oblique lines, as well as any shape.

k) Travel Protection: Double mechanical and electrical protection for maximum protection during travel.

l) Cutting Pressure Adjustment: Any cutting pressure can be adjusted directly from the keyboard, no manual operation required.

Loading System

1. Technical Parameters:

a) Maximum loaded glass size: 3700mm * 2800mm, minimum: 1500 * 1500mm; b) Loaded glass thickness: 3-15mm;

c) Loading Cycle: 40-90sec (adjustable);

d) Loading weight: 900 kg;

f) Loading depth: 700 mm;

g) Number of arms: three;

h) Number of suction cups per arm: three; i) One arm with one position.

2. Mechanical parts:

a) Swivel wheel chain: high-precision reinforced;

b) Vacuum suction cup: double design;

c) Swivel motor: CPG motor made in Taiwan;

d) Vacuum pump: PUXU (China-Germany) or equivalent.

3. Electrical components:

a) PLC controller: Deltac, Converter: Deltac, Proximity switch: Swiss ELCOd, Control cable: highly flexible shielded control cablese, Contactor: Schneiderf, Pneumatic component: Taiwanese Airtacg, Pressure sensor: Delta.

4. Specifications:

a) Rotation angle: adjustable from 95 to 98 degrees.

b) Rack depth: special extension mechanism with connecting rod, the suction cup moves forward 150 mm, the rack depth is 700 mm, suitable for various types of glass shelving.

c) Induction system: two sets of photoelectric sensors ensure safe operation.

d) Roller mechanism: special extension mechanism with connecting rod ensures synchronous lifting and safe separation of glass products.

e) Suction cup system: double-layer suction cup system provides strong suction.

f) Suction cup control: each suction cup has an independent air valve for control, allowing you to easily and freely select the number of working suction cups.

g) Lifting and loading system: lifts the glass before loading in case of glass damage due to adhesion.

h) Alarm system: the machine is equipped with alarm systems, a self-diagnostic system, and red and green alarm buttons.

i) Operating mode: the machine has two control modes (automatic and manual).
