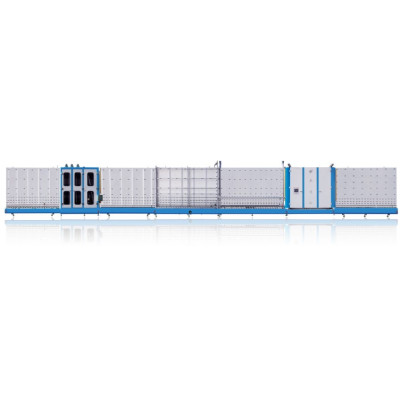

LBP2500S IG Line 2,5 m
Insulating glass machine S Series (Machinery of this series is with argon gas filling on-line and double station in aluminum spacer location section)
The production line adopts advanced manufacturing craft and technology of insulating glass making. It is mainly composed of glass loading, cleaning and drying, transmission, dual-station light inspection and aluminum spacer location, automatic assembly, large stroke pressing (internal assembly, argon gas filling inline) and transmission after pressing into double glazing glass
Delivery throughout Russia - by transport company.
S Series
Automatic Outer (Inner) assembly and Dual-station argon gas filling inline Insulating Glass Production Line
The production line adopts advanced manufacturing craft and technology of insulating glass making. It is mainly composed of glass loading, cleaning and drying, transmission, dual-station light inspection and aluminum spacer location, automatic assembly, large stroke pressing (internal assembly, argon gas filling inline) and transmission after pressing into double glazing glass.
Aluminum spacer location section adopts dual-station. In this way, while the front frame is manually placed with aluminium spacer, the rear frame transmits single glass, which has the advantages of precise location, high production efficiency and convenient maintenance.
Automatic outer assembly dual-station insulating glass prodution line
The production line adopts advanced manufacturing craft and technology of insulating glass making. It is mainly composed of glass loading, cleaning and drying, transmission, dual-station light inspection and aluminum spacer location, automatic pressing assembly, large stroke pressing and transmission after pressing into double glazing glass. This insualting glass production line can process non-step insulating glass and non-step triple glass with high efficiency.
Main features:
1. Automatically distinguish the coating side of coated glass and Low-E glass, indicated by alarm.
2. Washing machine adopts whole body stainless steel with 4mm and other corrosion resistant material, good waterproof, security, clean, and long service life. The bottom of washing machine is double stainless steel boards, and there is not any joint or drilling hole at the bottom.
3. It can process same edge double layers and triple layers insulating glass with high efficiency.
4. When adopts inner-panel assembly function, it can fill inert gas for IG unit.
5. Adopts the world famous brand low-voltage apparatus, sensor and PLC, etc. Make the line has longer service life.
6. PLC control system with touch screen interface, easy to operate, and self-diagnosis the fault of the line with high degree of automation.
7. The press machine can be opened in large journey to maximum 500mm, easy to maintenance.
8. Drying section adopts the circulation of hot air to ensure the drying effect of the glass and reduce noise.
9. Dual-station light inspection and aluminum spacer location, high production efficiency and convenient maintenance
